Homework 9

Primary Objectives:

1. Be able to write a complex MVC web application and deploy to the cloud
2. Learn how to provision and deploy a database to the cloud

Overall Requirements:

• Use Azure for both the web application and the database
• Must build the database from script files that are maintained in your project under Git
• Your database password cannot appear in your Git repository

Step #1: Create the Database Remotely on Azure

To create a database remotely on Azure you first have to create and subscribe to Azure on their website.

• Click on + New located on the top left of Azure Portal
• Click Databases
• Final click on SQL Database
• Then just fill in the information to create you SQL Database!

Note: These is also a quick SQL databases on the side menu

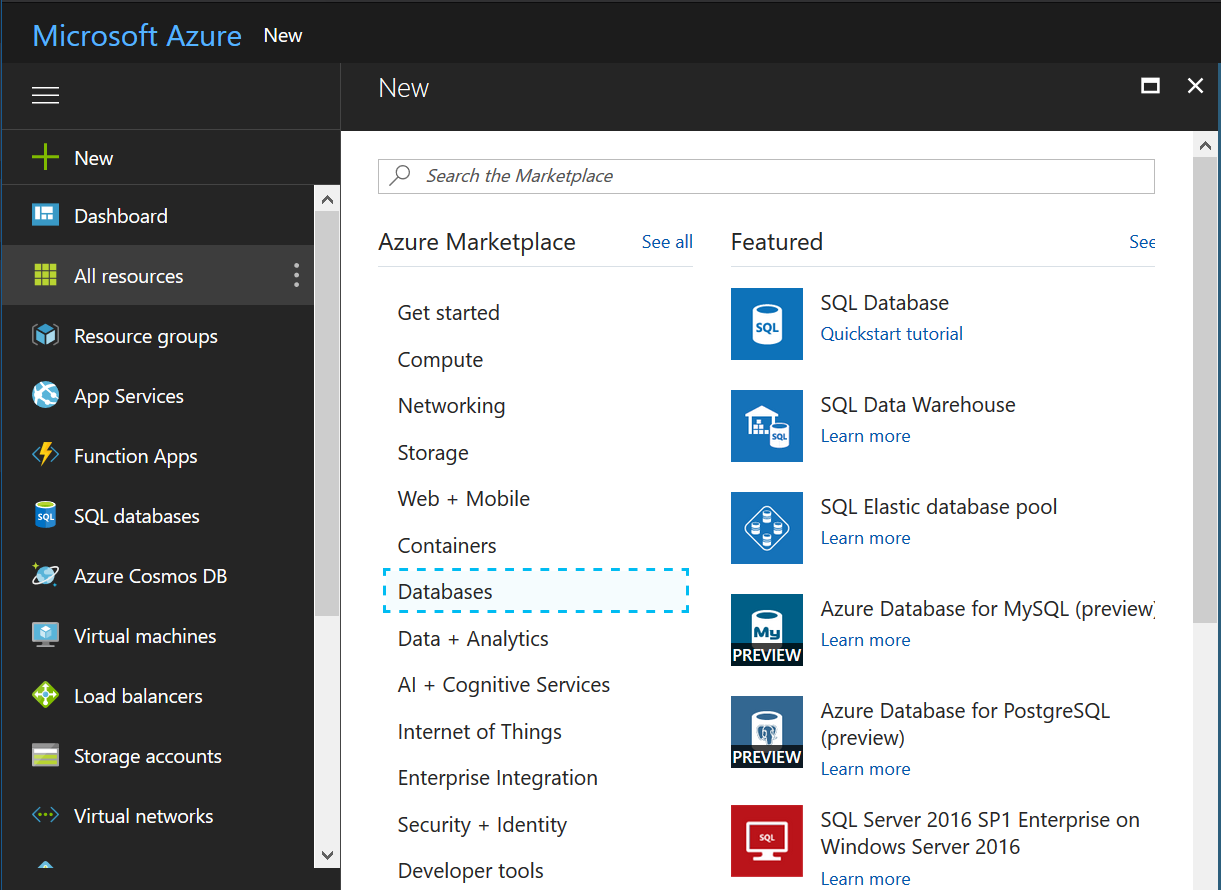

Add Database:

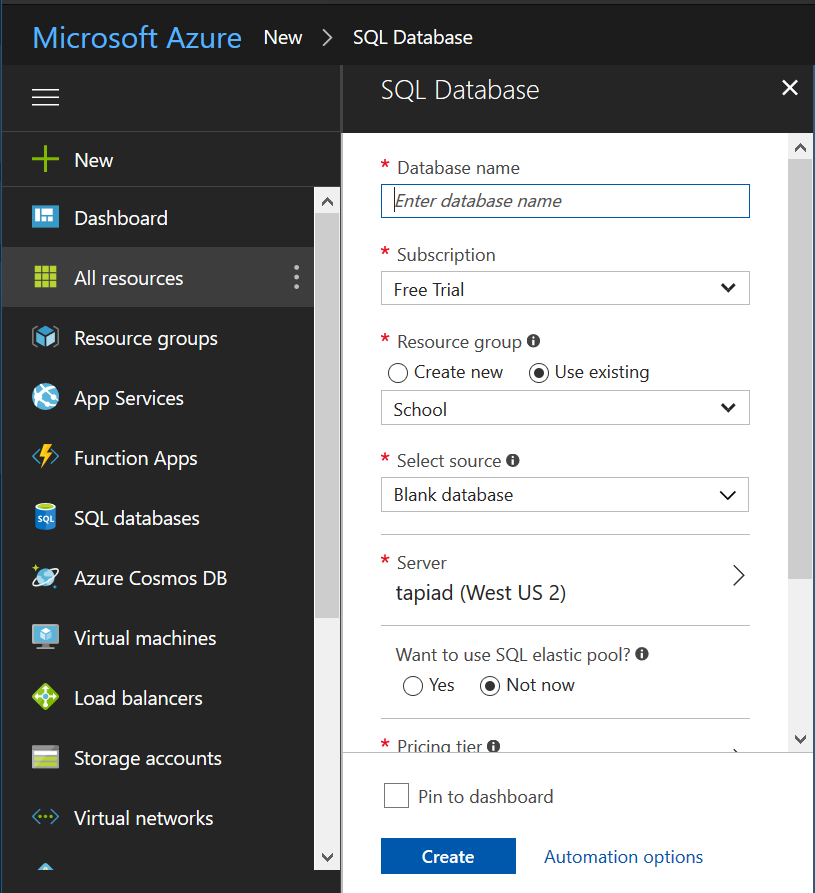

SQL Database Form:

Step #2: Deploy the web application on Azure

• Same as adding a database, click on + New
• Click Web + Mobile
• Select Web App
• Fill out the form

Note When adding a Database/Web App it will take some time to deploy

Web App Form:

Step #3: Deploying

After completing your web application, on Microsoft Visual Studio you will want to connect to Azure Database the one you created. This is located in the up.sql script:

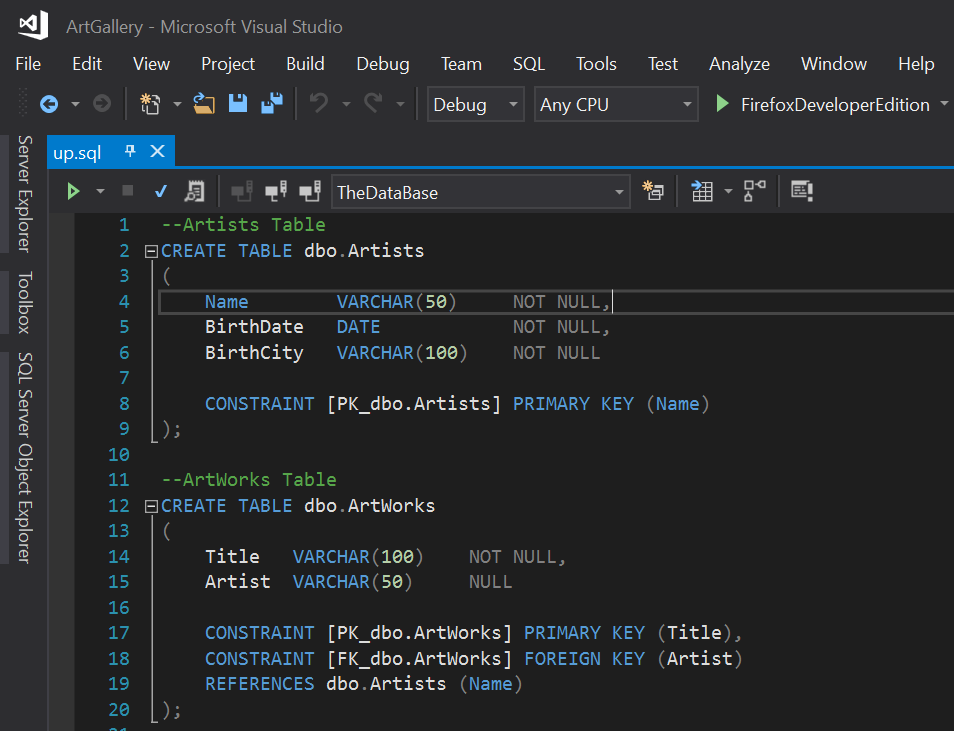

Adding Tables to Azure Database:

Note: You will need to login to your Azure

After adding table to the Azure Database you will want to Publish. Right-click on your project’s name and search for publish…

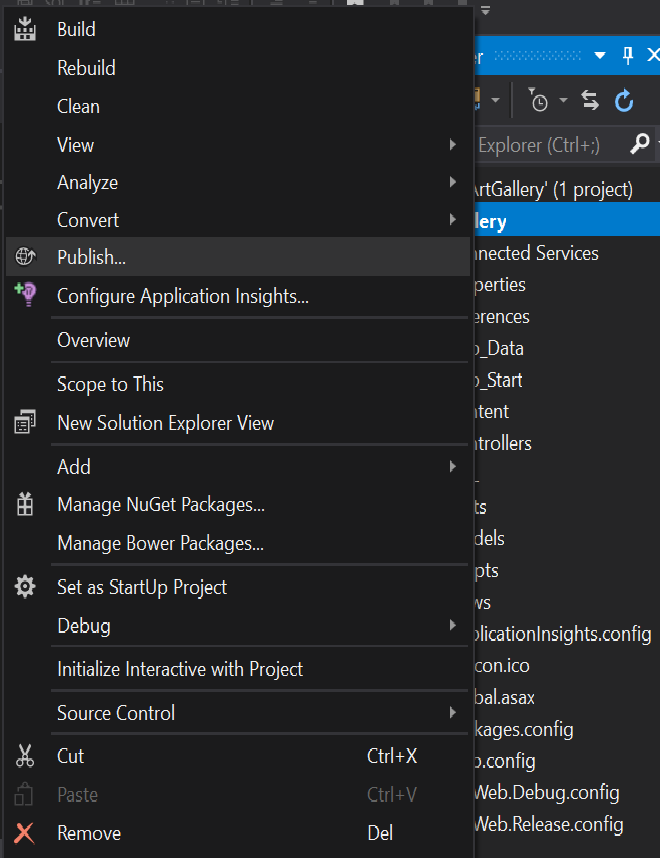

Click to Publish:

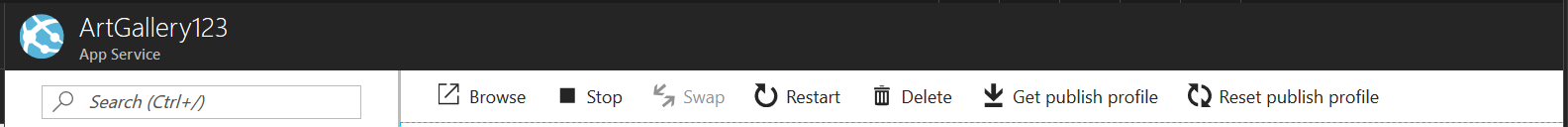

After clicking, you are going to import profile where it is going to ask you for a publish profile. You will need to download this from you App Service on Azure. This is called Get publish profile. Save it where you will be able to find it.

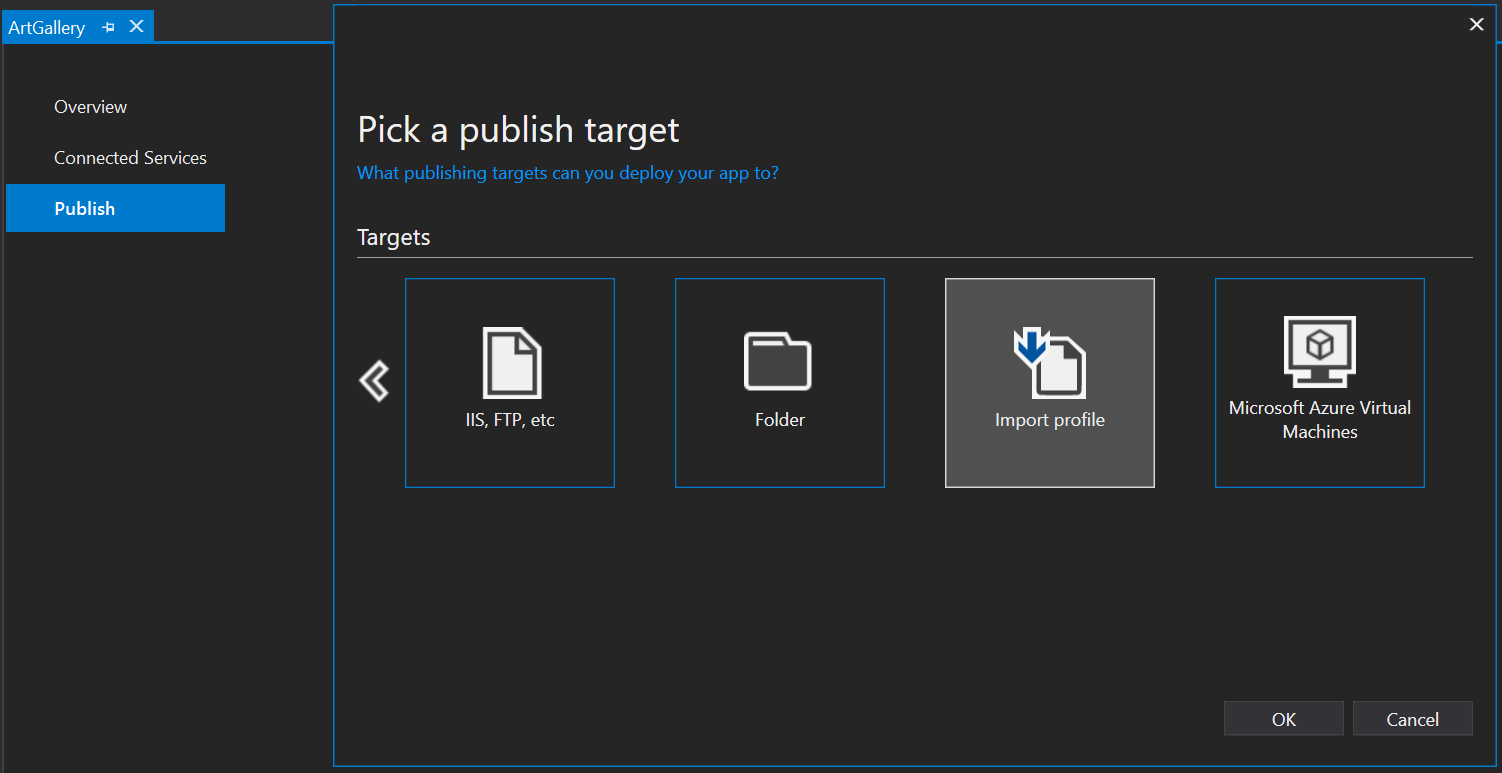

Import Profile: Browse for Profile and Open it:

This will take you to your Azure website but we will need to go back to add the string connection if you still want to update and add more to your web application.

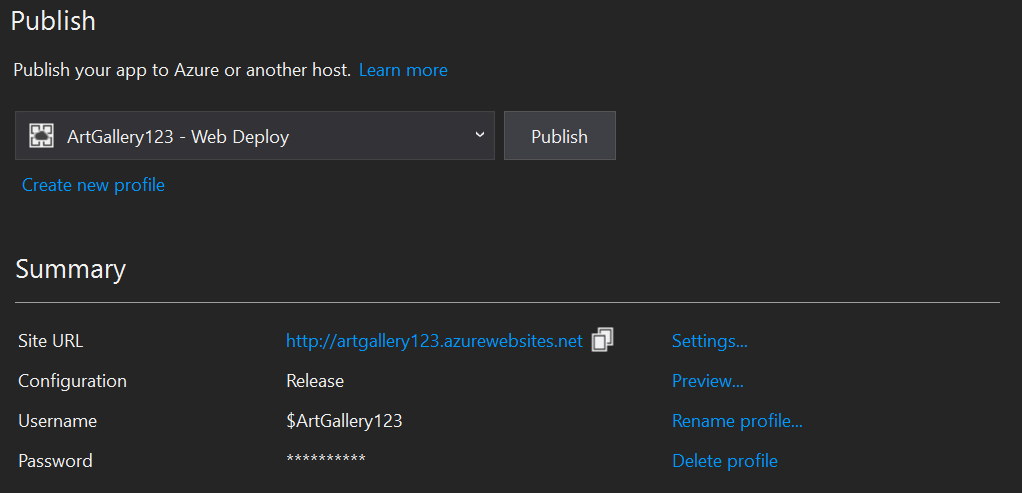

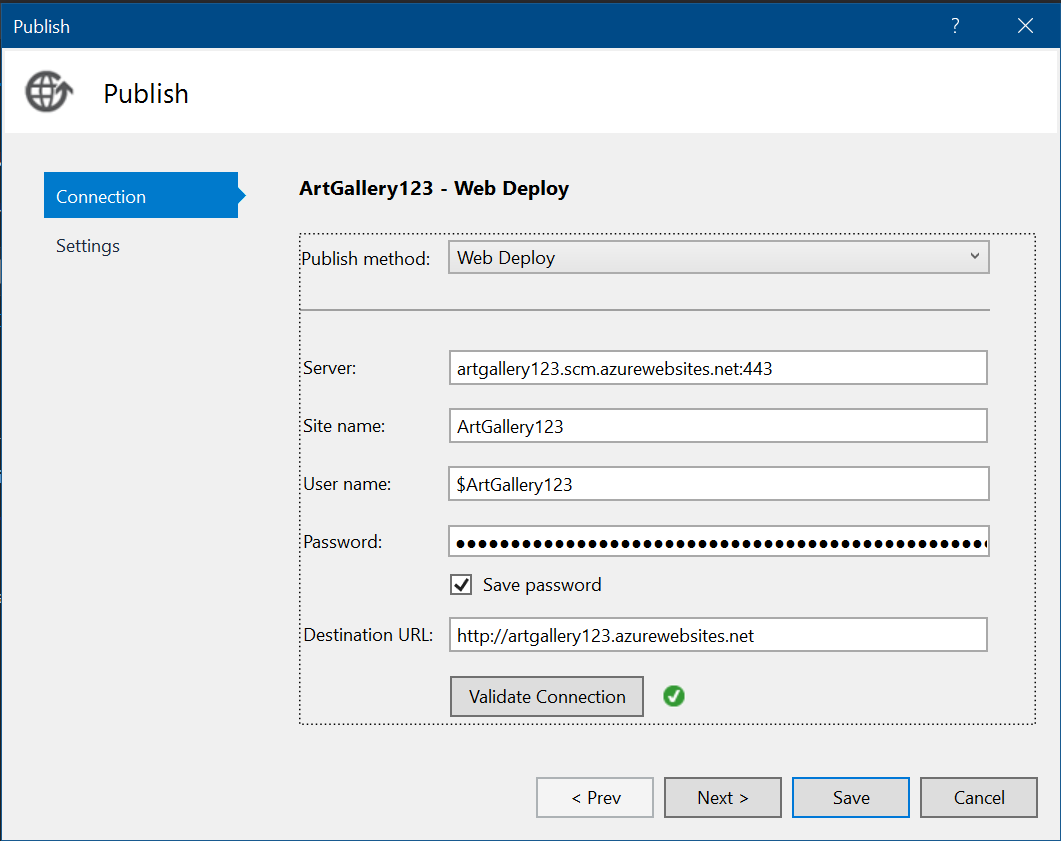

Publish Details:

• Click on Settings…
• Validate Connection

• Click Next >

Now, go back to your Azure Portal and click on your database. Under Connection strings click on Show database connection strings. This will take you to your ADO.NET (SQL authentication) where you will need to copy and paste. This will be added in the Remote connection string:

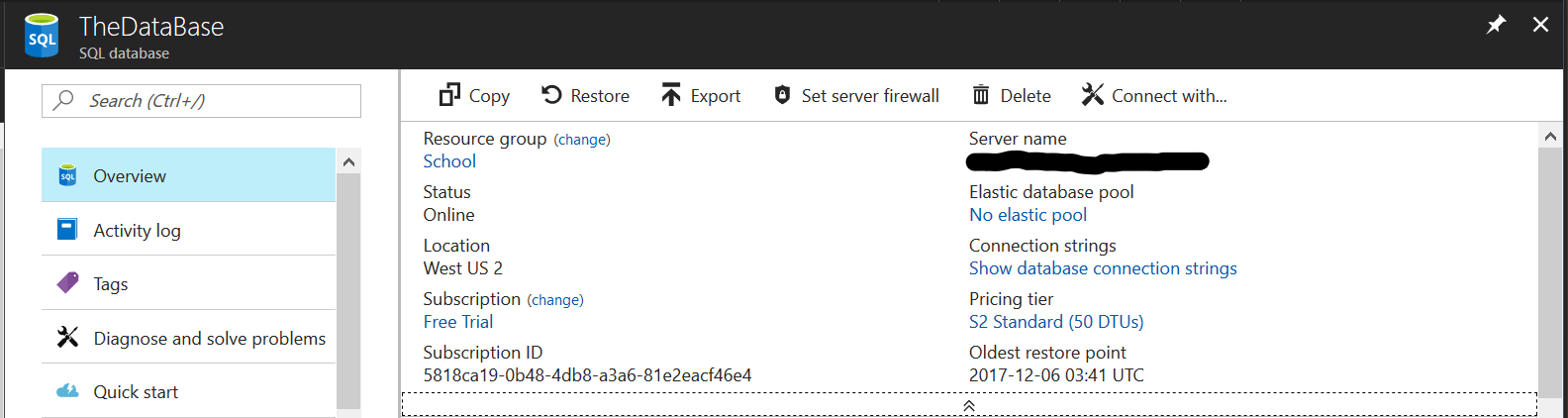

Copy Connection String:

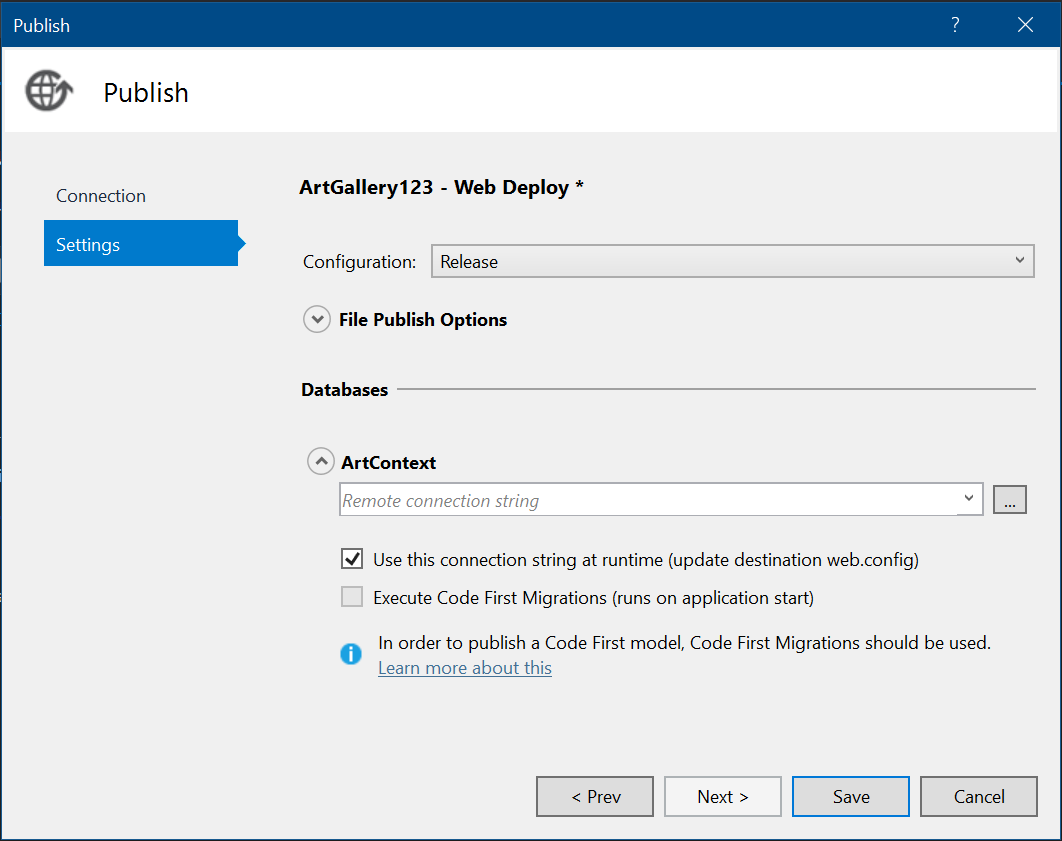

Paste into Remote connection string:

• Click Save

Now for the final step click on Publish! This will take a minute or two to load and deploy your web application onto Azure.

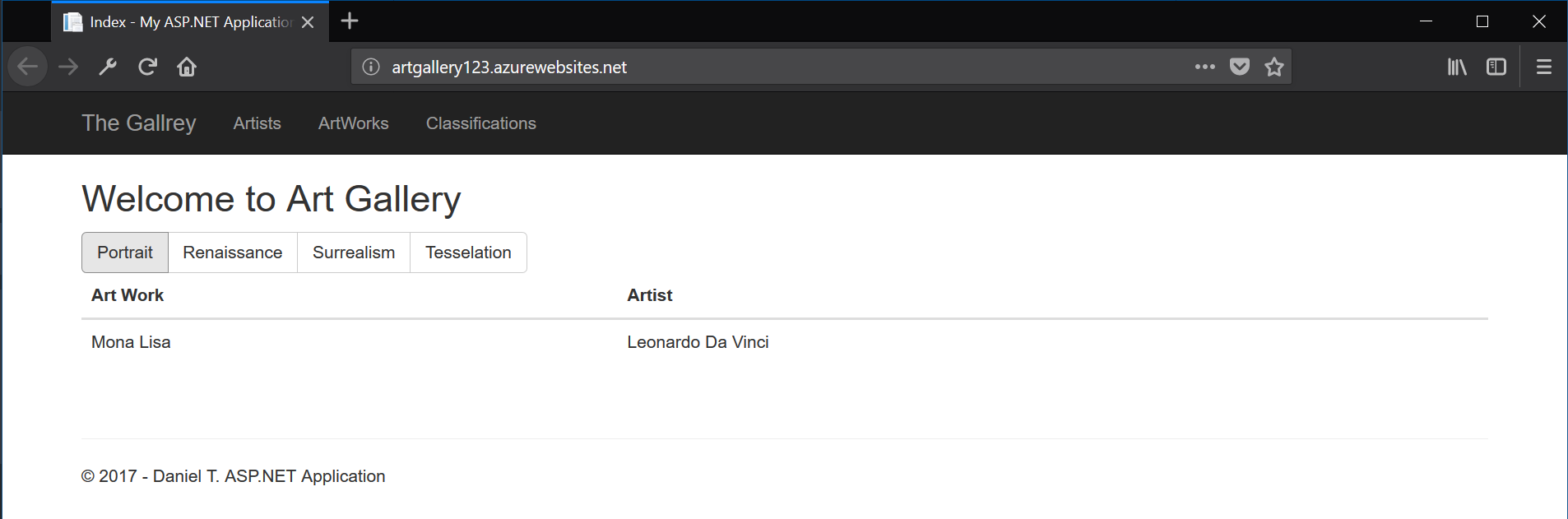

Azure Web Application:

You successfully deplored your web application!
